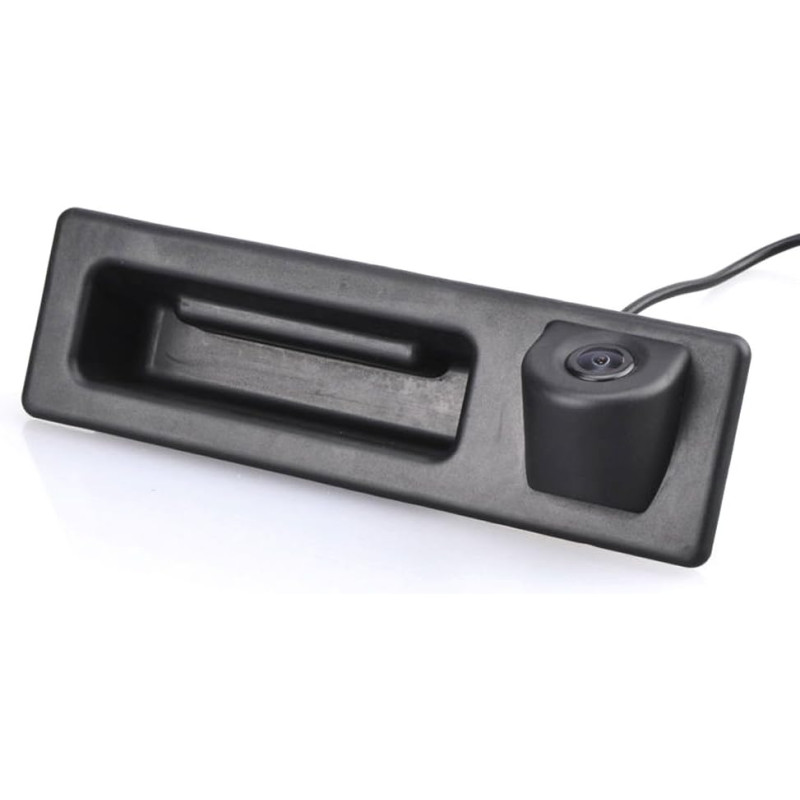

BMW F30 F22 F40 F44 G01 G20 rear view camera

PRODUCT DESCRIPTION

This camera is an aftermarket camera. If you want to connect to the original factory screen, please confirm that it allows the use of the aftermarket camera (Some original screen needs to coding or use decoder to make it compatible with the aftermarket camera). The aftermarket Android screen and other external screens can work directly.

FOR BMW MODEL

2018 2019 2020 2021 2022 2023/BMW 1 Series/3 Series /X1/X3

1 Series F40 2020-

2 Series F22/F23/F45/F46, M2 F87 2018~2019

2 Series F44 G42 2020-

3 Series F30/F31/F34, M3 F80 2018~2019

3 Series G20 G21 2020-

Rear Tailgate switch OEM 7463161, 7381867, 7405633

1.Pixels: 728*488
2.Power: DC12V
3.View Angle: horizontal 130 degrees
4.Image Sensor: 1/3 color AHD720P- CCD
5.TV system: NTSC (Default)

6.Horizontal Resolution: 800 TV lines

7.Video signal: CVBS

8.Sync. System: internal

9.S/N Ratio: >48Db

10.Electronic Shutter: 1/60 to 1/100,000 seconds

11.Video Output: 1.0Vpp, 75Ohm

12.White Balance: Auto

13.Water-proof: IP67

14.Video Cable Length: about 6m
